AC Units
ROOM AIR CONDITIONERS
We Offer Several Different FRIEDRICH Unit Model Choices:
KUHL Cool only Series:
KCQ06A10A, KCQ08A10A, KCQ10A10B, KCS08A10A, KCS10A10A, KCS12A10A, KCS12A30A, KCS14A10A, KCS16A30A, KCM14A10A, KCM18A30A, KCM21A30A, KCL24A30B, KCL28A30A, KCL36A30A
KUHL Cool with Heat Pump Series: KHS10A10A, KHS12A33A, KHM18A34A, KHL24A35A
KUHL Cool with Electric Heat Series: KEQ08A11A, KES12A33A, KES16A33A, KEM18A34A, KEL24A35B, KEL36A35A

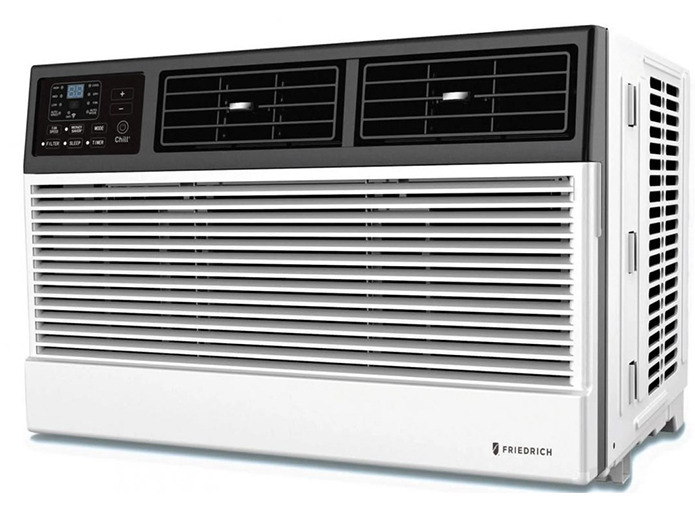

CHILL Premier Cool Only Series:
Window or Thru-Wall Applications
CCW06B10B, CCW08B10B, CCW10B10B, CCW12B10B, CCW15B10B, CCW18B30B, CCW24B30B
CHILL Premier Cool with Electric Heat Series: CE08B11A, CEW12B33A, CEW18B33A, CEW24B33A

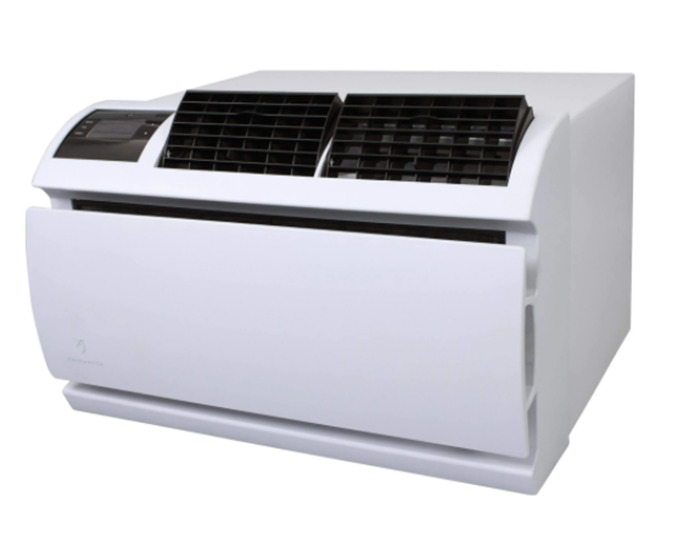

FRIEDRICH WALLMASTER
Rear-Breather THRU-the-WALL Cool only Series:
WCT08A10A, WCT10A10A, WCT12A10A, WCT10A30A, WCT12A30A, WCT16B30A
WALLMASTER THRU-the-WALL Cool with Heat Pump Series: WHT12A33A
WALLMASTER THRU-the-WALL COOL with Electric Heat Series: WET10A33A, WET12A33A, WET16A33A
WSE SLEEVE and / or AG Architectural Grille - Sold Separately
FRIEDRICH UNI-FIT REAR-BREATHER
UNI-FIT THRU-the-WALL Cool only Series: UCT08B10A, UCT10B10A, UCT10B30A, UCT12B10A, UCT12B30A, UCT14B30A
UNI-FIT THRU-the-WALL Cool with Electric Heat Series: UET08A11A, UET10A33A, UET1233A, UET14A33A
USC SLEEVE and/or UXAA Architectural Grille - sold separately
Friedrich ZONEAIRE SELECT PTAC Cool with Electric Heat Series: PZE07K3SB, PZE09K3SB, PZE09R3SB, PZE12K3SB, PZE12R3SB, PZE15K5SB
Friedrich ZONEAIRE SELECT PTAC Cool with Heat Pump Series: PZH07K3SB, PZH09K3SB, PZH09K3SB, PZH12K3SB, PZH12R3SB, PZH15K5SB
PDXWSA SLEEVE and/or PXAA Architectural Grille - sold separately
Friedrich ZONEAIRE PREMIER
PTAC Cool with Electric Heat Series: PDE07K, PDE07R, PDE09K, PDE09R, PDE12K, PDE12R, PDE15K, PDE15R
Friedrich ZONEAIRE PREMIER
PTAC Cool with Heat Pump Series: PDH07K, PDH07R, PDH09K, PDH09R, PDH12K, PDH12R, PDH15K, PDH15R
PDXWSA SLEEVE and/or PXAA Architectural Grille - sold separately
Friedrich FRESHAIRE INVERTER TECHNOLOGY
PTAC Cool with Heat Pump Series: PVH09K, PVH12K, PVH09R, PVH12R
PDXWSA SLEEVE and/or PXAA Architectural Grille - sold separately
Friedrich FRESHAIRE INVERTER TECHNOLOGY
PTAC Cool with Heat Pump Series: PVH09K, PVH12K, PVH09R, PVH12R
PDXWSA SLEEVE and/or PXAA Architectural Grille - sold separately

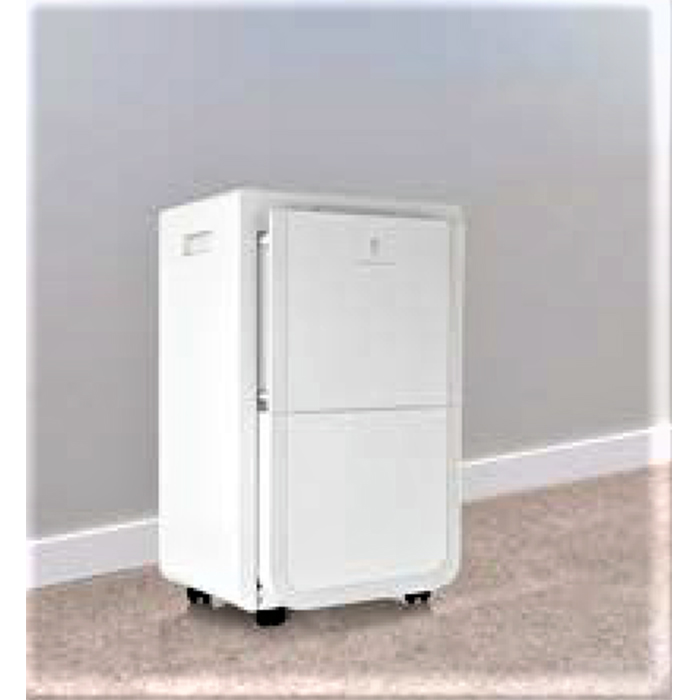

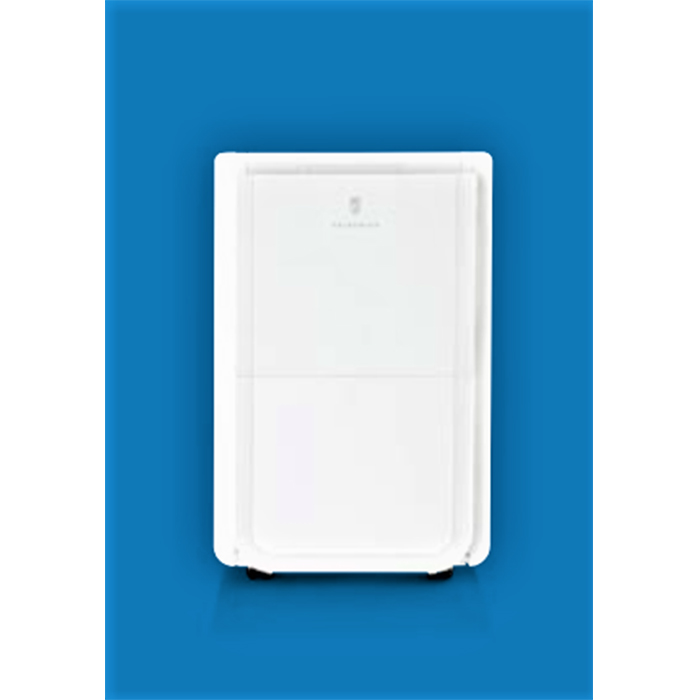

FRIEDRICH - DEHUMDIFIERS
35 AND 50 PINT CAPACITY
Built-in drain pump for carefree operation
SPECIFICATIONS -
- Model Number D35B1A
- Model Number D50B1A
ENERGY STAR ® Yes Yes
Dehumidification Capacity* (Pints/24 hrs) 35 50
Built-in Drain Pump Yes Yes
Drain Pump Hose (Length ft) 16' 9" 16' 9"
Control Digital Digital
Power 115V/60HZ 115V/60HZ
Current (Amps) 5.2 8.2
Watts 600 900
Energy Factor (EF), L/kWh** 2.0 2.0
Compressor Type Rotary Rotary
Refrigerant Type/Charge amount (Oz) R-410A / 8.8 Oz R-410A / 10.9 Oz
Operating Temperature Range 41°F– 90°F 41°F– 90°F
Bucket Capacity (Pints) 16.2 approximate 16.2 approximate
Easy Roll Casters Yes-built in Yes-built in
Dimensions (WxHxD) 15" x 23 1/4" x 12"
Net/Shipping Weight 40.0/45.9 44.3/48.9
Carton Dimensions (WxHxD) 16 1/4" x 24 3 /4" x 13 3 /4"
All models 125V-15A 5-15P 6 FT power cord
*The rating is expressed in pints per 24 hour period.
**Energy Factor: The energy efficiency of dehumidifiers is measured by its energy factor, in liters of water removed per
kilowatt-hour (kWh) of energy consumed or L/kWh. In general, a higher energy factor means a more efficient dehumidifier.
As an ENERGY STAR® partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR® models meet
the ENERGY STAR® guidelines for energy efficiency.
One year limited warranty on parts and labor; five years on the sealed refrigeration system.
Due to continuing research in new energy-saving technology, specifications are subject to change without notice. LISTED
DEHUMIDIFIERS
183H
BR_DEH_2022
Friedrich Air Conditioning Co. | 10001 Reunion Place, Suite 500 | San Antonio, TX 78216 | 877.599.5665 | www.friedrich.com
